Skyrc D200 Dual Balance/Charger 300W AC/DC with soldering iron

Skyrc D200 SK-100097 Dual Balance/Charger 300W AC/DC with 60W soldering iron

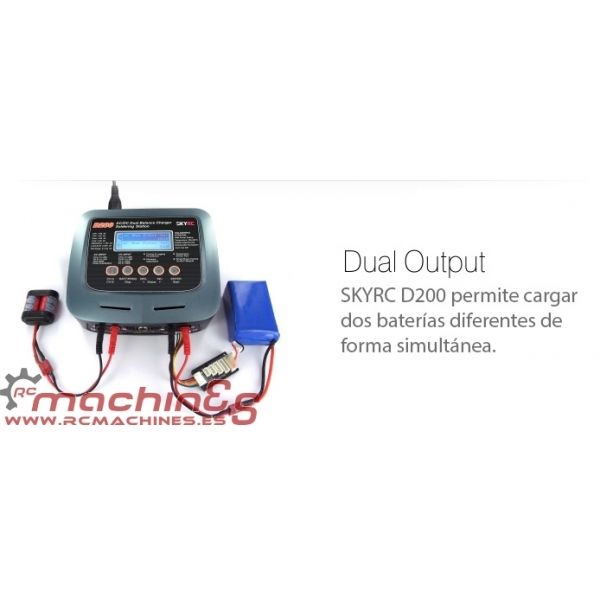

SKYRC D200, a twin-channel charger with two independent circuits. Charge two different kinds of batteries simultaneously. Supports power distribution in AC mode and in DC mode. Users could set the terminal voltage by themselves and connect it to PC for PC control and firmware upgrade. Users could also use it as Lithium Battery Meter and Battery Internal Resistance Meter. For safely have an Automatic Charging Current Limit, Capacity Limit, Temperature Threshold and Processing Time Limit.

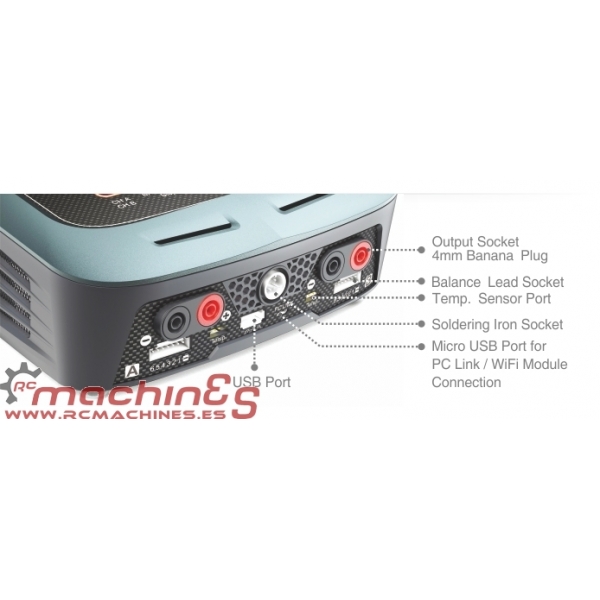

Output ports:

• Twin ports for charging with 4mm banana connectors
• Balance port for each charging channel.
• Temp sensor port
• Micro USB port for PC link / WiFI module connection
• Soldering iron port 60W

Tilt stand design.

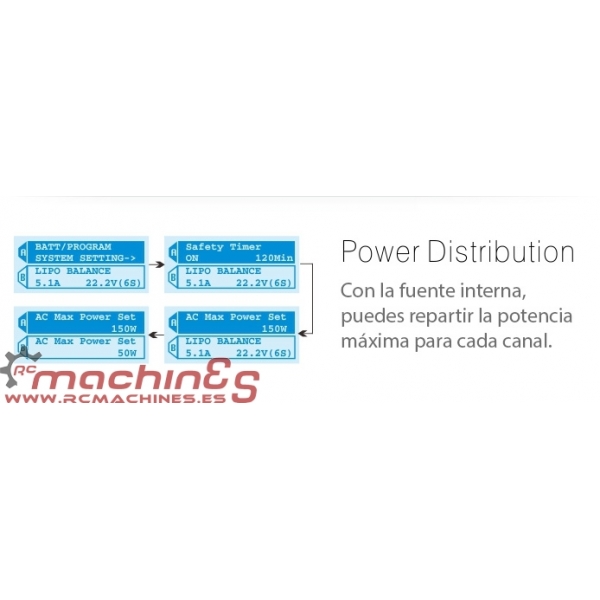

Power distribution, in AC mode 200W for the two ports and in DC mode 300W (Ch A 200W, Ch B 100W).

The additional LiHV mode is able to charge the new generation of LiPO batteries with an end of charge voltage of 4,35V/cell

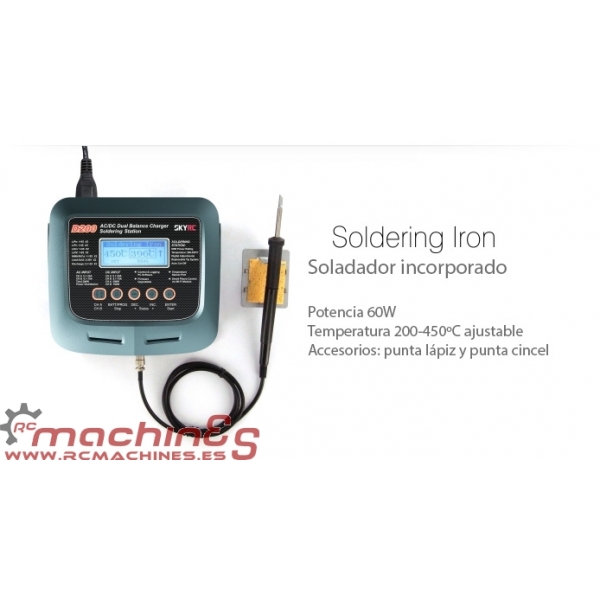

Soldering iron with 60W, selectable temp 200-450ºC with pencil and chisel tip.

Special features:

• Integrated balance port for each channel.
• Automatic Charging Current Limit, Capacity Limit, Temperature Threshold, Processing Time Limit.
• Store up to 20 different charge /discharge profiles for each channel.
• Can check battery's total voltage, the highest voltage, the lowest voltage and each cell's voltage.
• Can check battery's total internal resistance and each cell's internal resistance.
• Monitor pack voltage, cell voltage and other data during the charging, view charge date in realtime graphs, and can also control charging and update firmware from "Charge Master".
• The charger allows user to change the end voltage. (for expert user only).

Software Charge Master 2.0

monitor pack voltage, cell voltage and other data during the charging, view charge data in realtime graphs, and can also control charging and update firmware from "Charge Master".

APP with WIFI module, for smartphone

Smart Phone Control via Wi-Fi Module (both iOS and Android) This charger can be controlled and operated by smart phones via Wi-Fi module (optional part SK-600075).

Specifications:

• Dimension: 197x182x71mm
• Weight: 1260g

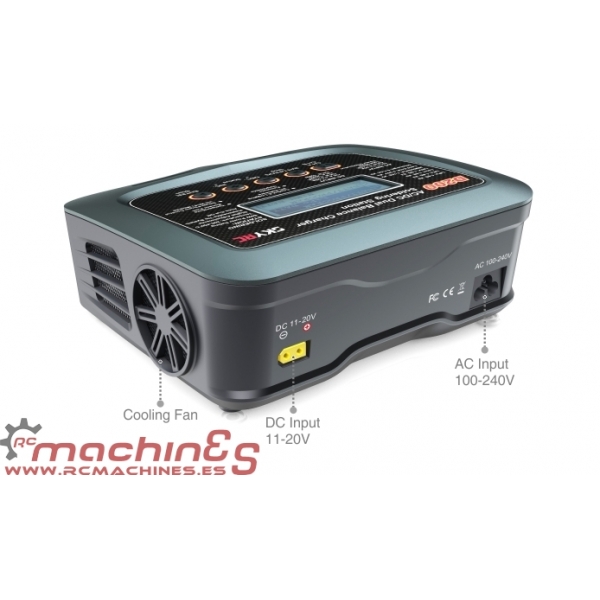

• Input Voltage: AC100-240V / DC 11-20V
• Charge Circuit Power: 300W with DC input (Ch A 200W, Ch B 100W); 200W with AC input.
• Discharge: 2x10W
• Charge current: Ch A 0.1-20A, Ch A 0.1-10A
• Discharge current: 0.1-5A
• Max drain for balancing: 300mA/cell.
• Charge current trickle: 30mA-300mA and off.
• LiPO/LiFe/LiIon/LiHV: 1-6S
• NiCd/NiMH: 1-15S
• Pb voltage: 2-20V

User manual D200
